Application Case: Maintenance
![](https://www.agile4.eu/wp-content/uploads/2023/01/AGILE4_UC3-edited-1-1024x576.png)

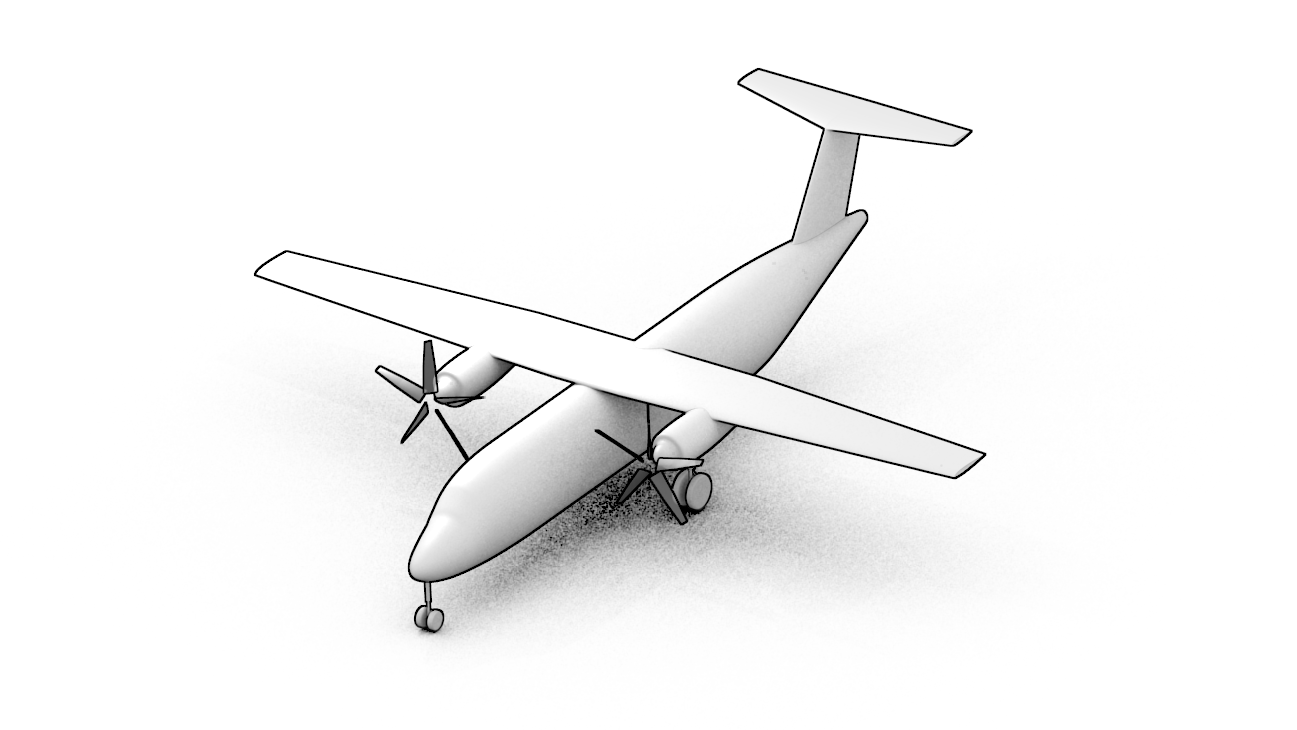

Ambition: Evaluate and optimize on-board system maintainability and thermal performance of a CS-23 aircraft for different levels of on-board system electrification
![](https://www.agile4.eu/wp-content/uploads/2023/01/ac4-motto-1024x721.png)
Video or gif
Models
Below you can download the models produced during the development process of this Application Case
![]() | Stakeholders, needs and Requirements |
![]() | Operational Scenario |
![]() | Aircraft architectures |
![]() | MDO formulation – Optimization |
![]() | Baseline-CPACS |
MDO Workflow

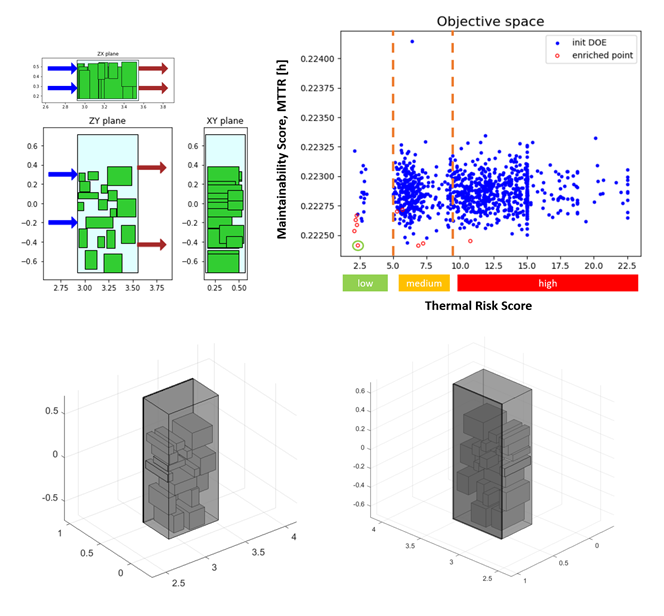

Results
Take away
- The maintainability of on-board systems can be successfully optimized using the tools of the AGILE4.0 framework
- Optimization shows little potential considering the low level of detail of the early design stage.
- Interdependence between the maintainability domain and the overall aircraft design domain were less pronounced than expected.
